Protocols can provide rich text/html and image/png displays for notebooks, integrated development environments, and other rich display frontends. This page shows both renderings for every protocol that implements them.

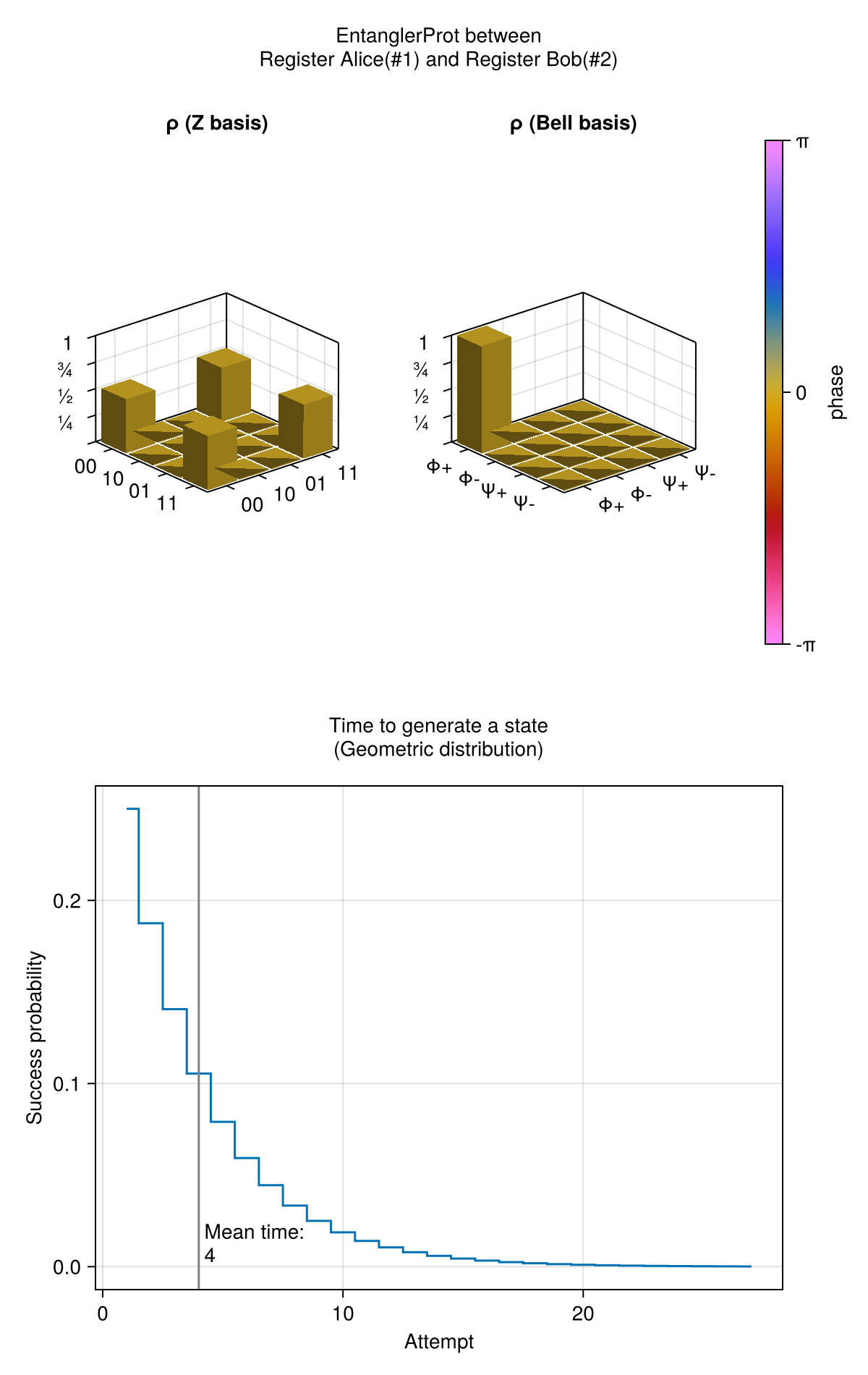

EntanglerProt protocol
on Register Alice(#1) and Register Bob(#2)
- Success probability per attempt
- 0.25
- Mean time to generate a state
- 4.0

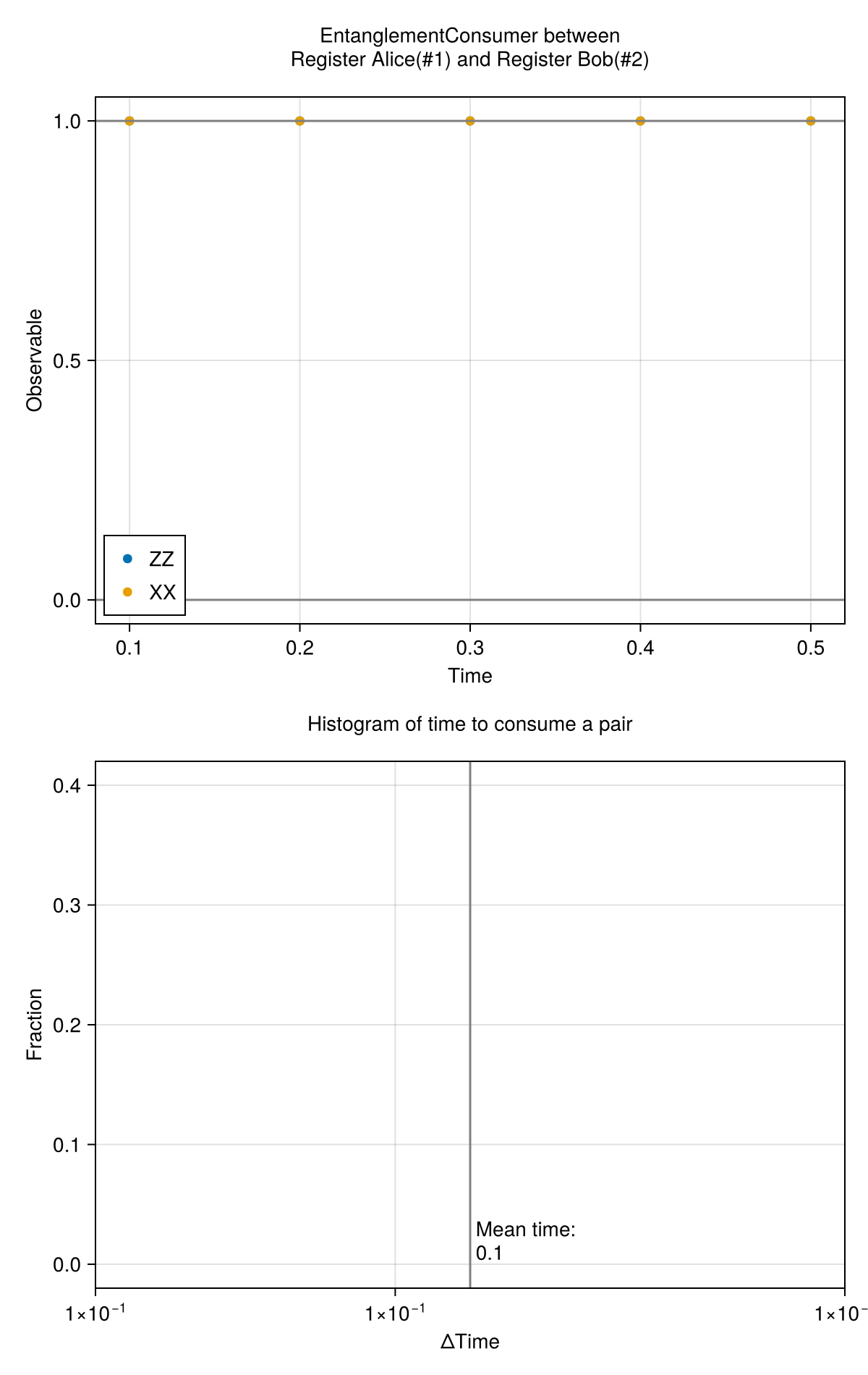

EntanglementConsumer protocol
on nodes Register Alice(#1) and Register Bob(#2)
- Consumed pairs
- 5
- Total time
- 0.5
- Average time between pairs
- 0.1
- Average observable of ZZ and XX
- 0.9999999999999997 | 0.9999999999999997
Log
| Time |
Observable 1 |
Observable 2 |
| 0.100 |
1.000 |
1.000 |
| 0.200 |
1.000 |
1.000 |
| 0.300 |
1.000 |
1.000 |
| 0.400 |
1.000 |
1.000 |
| 0.500 |
1.000 |
1.000 |

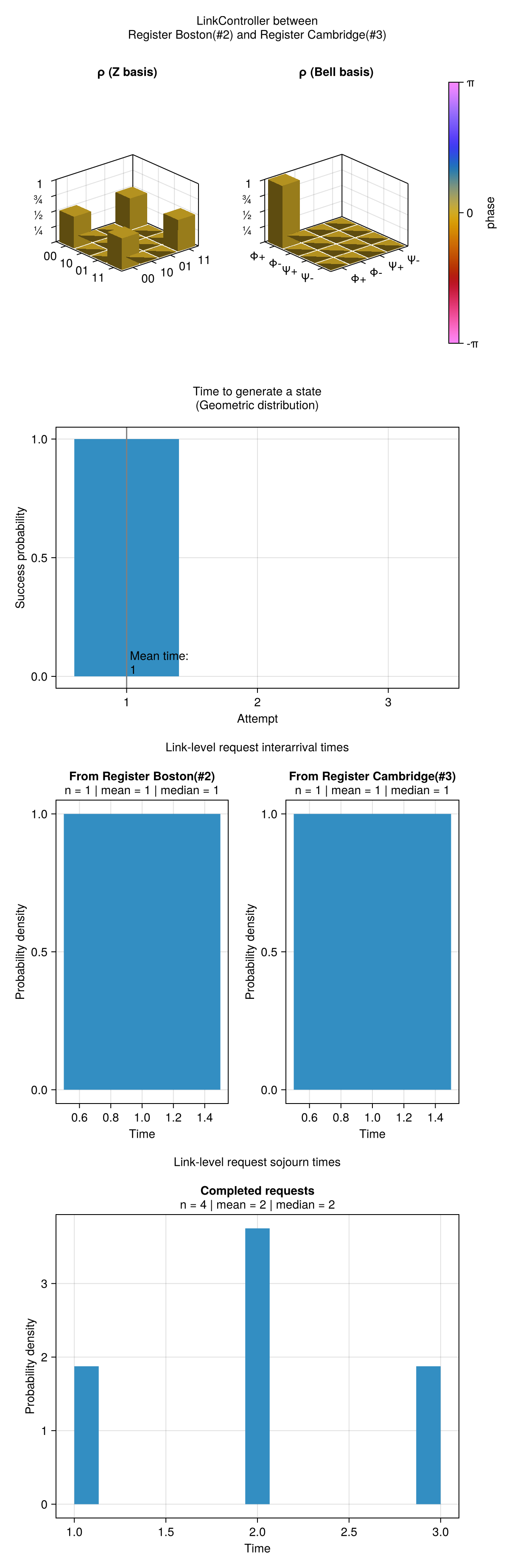

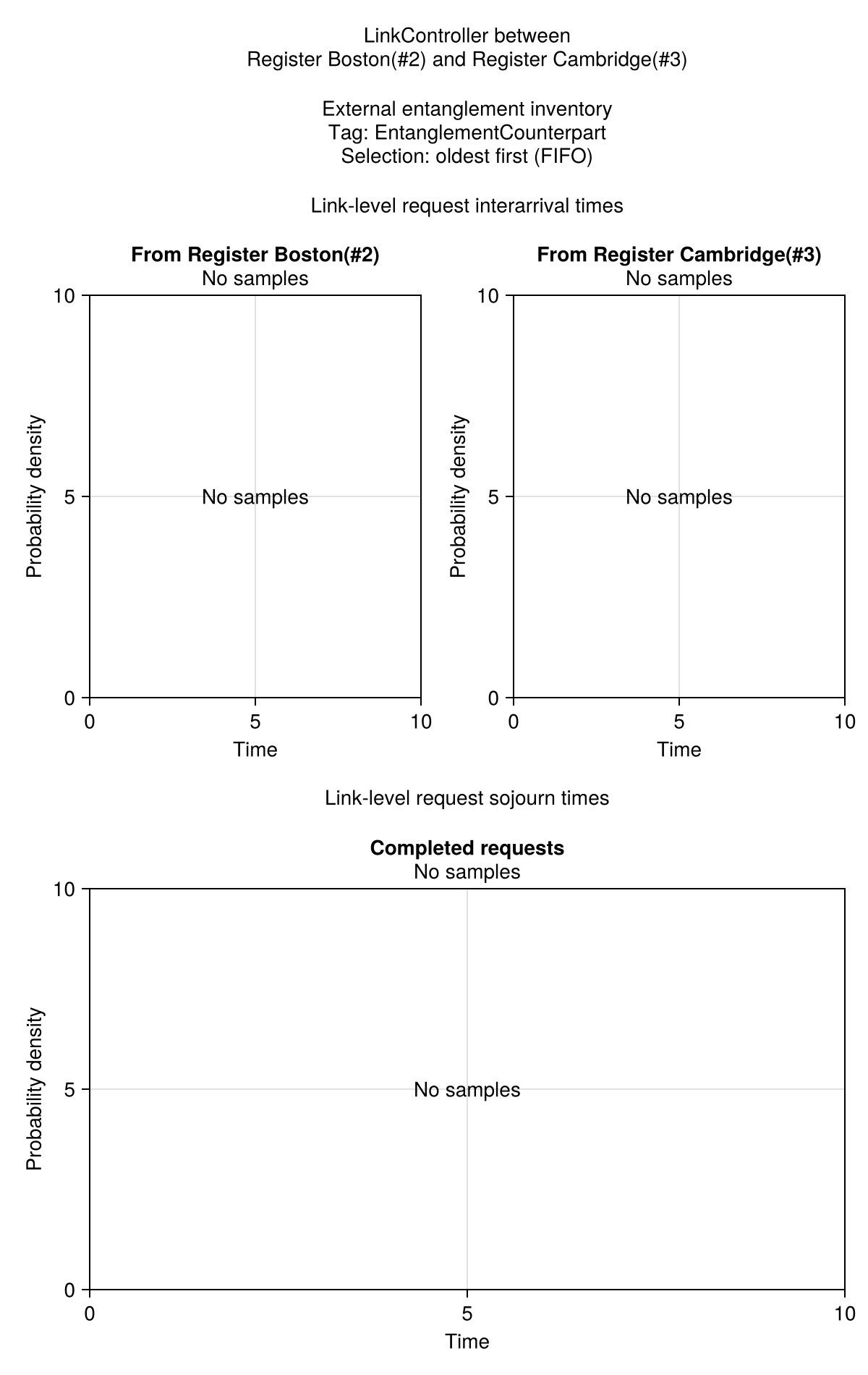

LinkController protocol
on Register Boston(#2) and Register Cambridge(#3)
Entanglement generation
EntanglerProt protocol
on Register Boston(#2) and Register Cambridge(#3)
- Success probability per attempt
- 1.0
- Mean time to generate a state
- 1.0
Link-level request interarrival times
Register Boston(#2)
- Requests
- 2
- Mean interarrival time
- 1.0
- Median interarrival time
- 1.0
Register Cambridge(#3)
- Requests
- 2
- Mean interarrival time
- 1.0
- Median interarrival time
- 1.0
Link-level request sojourn times
- Completed requests
- 4
- Pending requests
- 0
- Mean sojourn time
- 2.0
- Median sojourn time
- 2.0
Request log
| Originator node |
Arrival time |
Sojourn time |
| 2 |
1.0 |
1.0 |
| 3 |
1.0 |
2.0 |
| 2 |
2.0 |
2.0 |
| 3 |
2.0 |
3.0 |

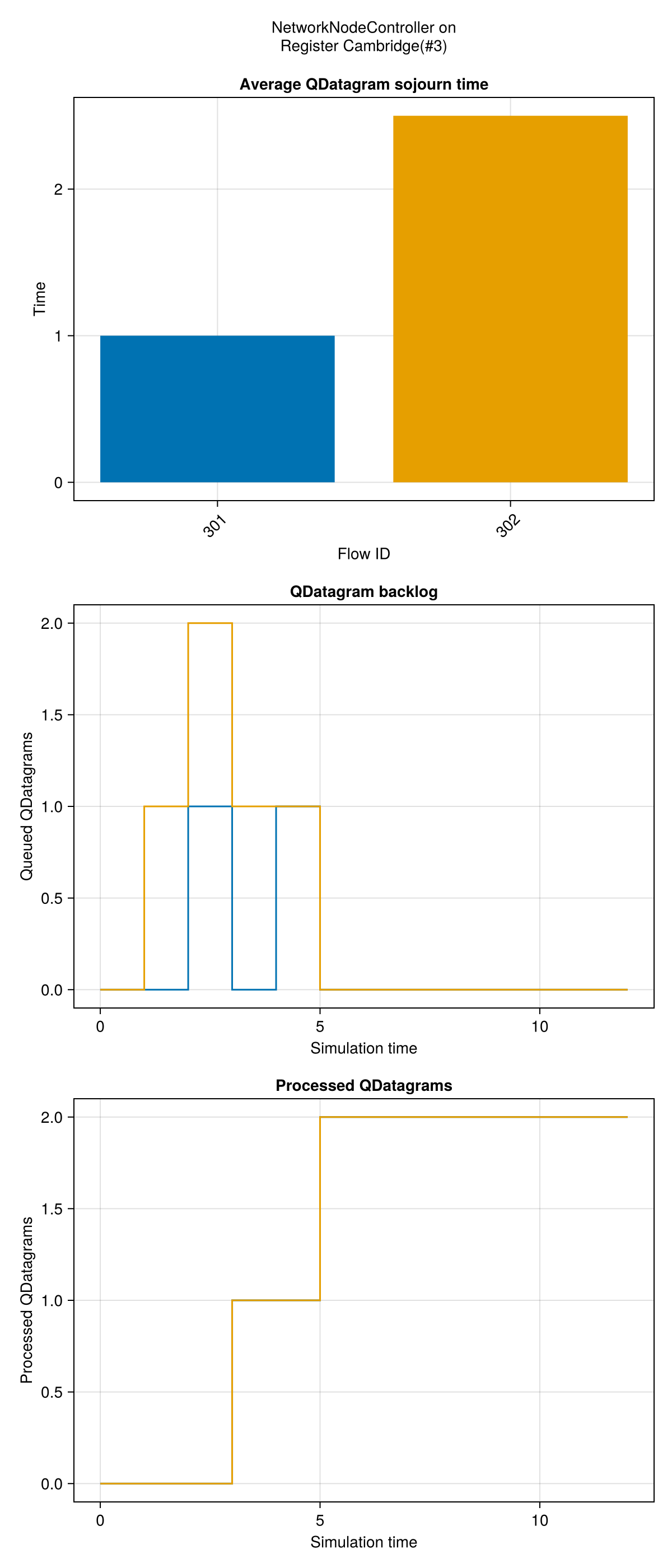

NetworkNodeController protocol
on Register Cambridge(#3)
Per-flow QDatagram statistics
| Flow ID |
Current backlog |
Average sojourn time |
Processed QDatagrams |
| 301 |
0 |
1.0 |
2 |
| 302 |
0 |
2.5 |
2 |

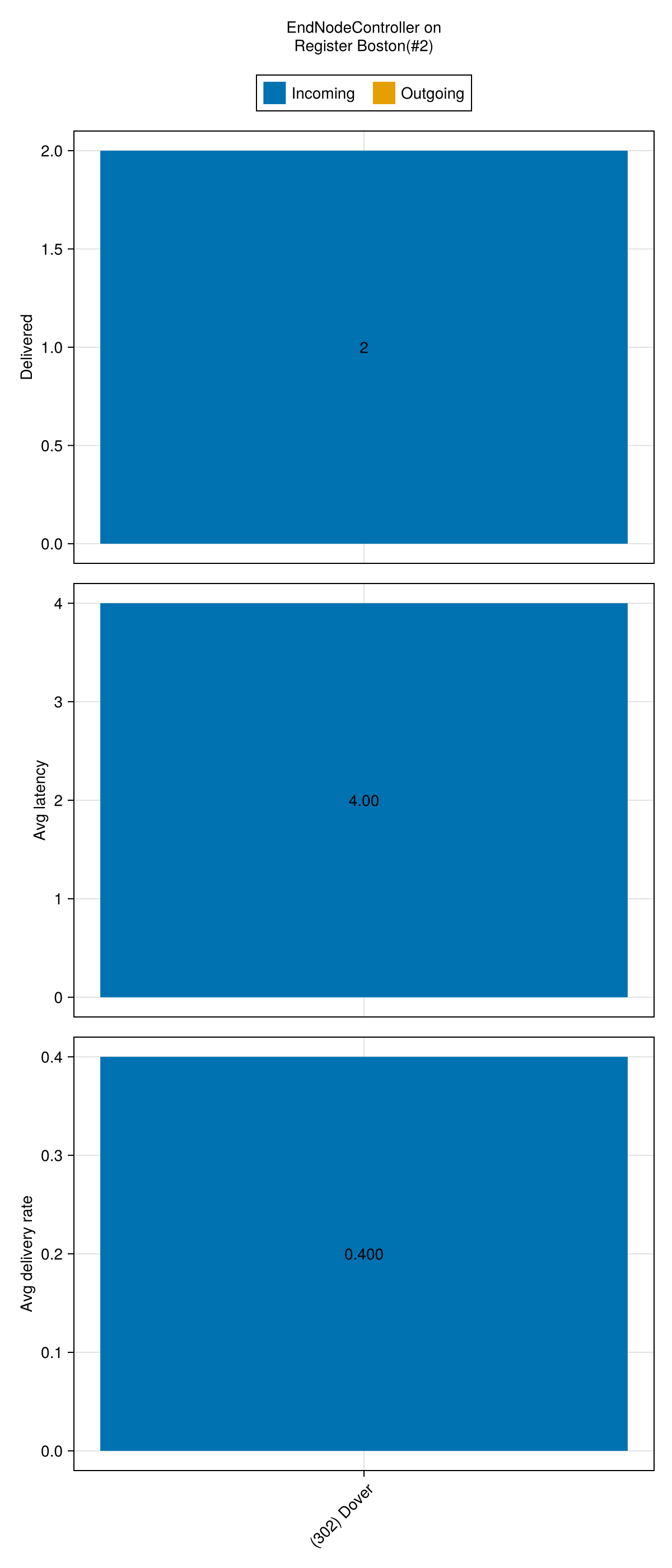

EndNodeController protocol
on Register Boston(#2)
Flows
-
Flow
302:
Register Dover(#4)
→
Register Boston(#2)
